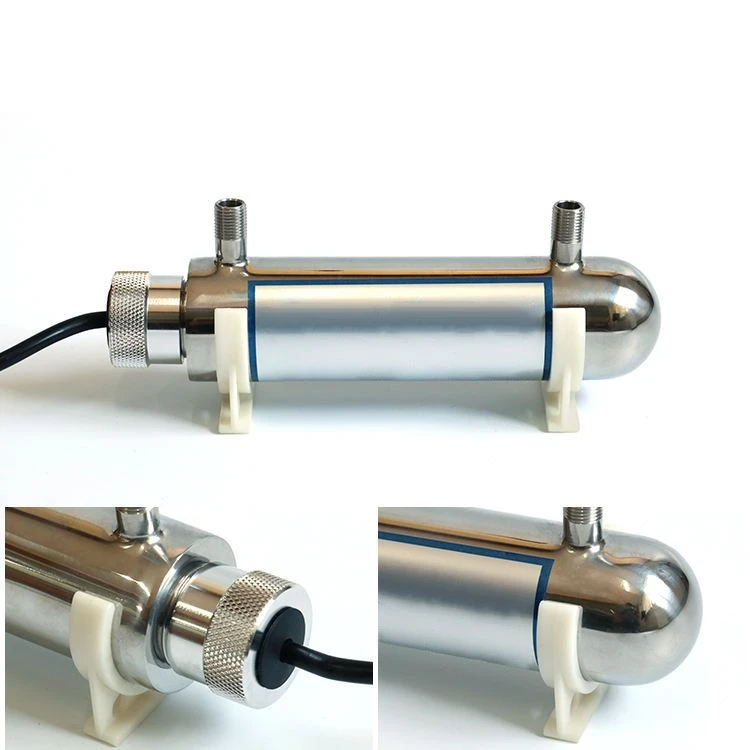

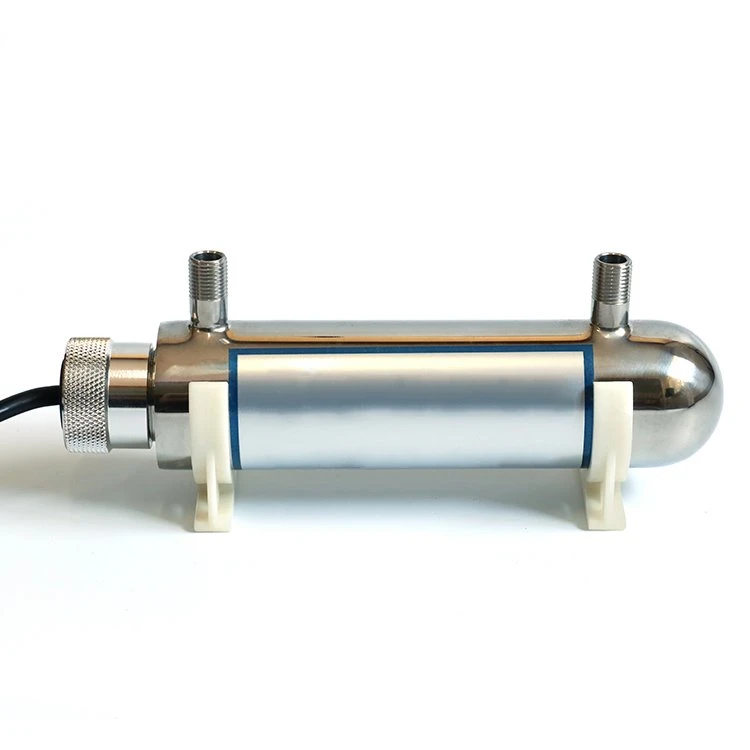

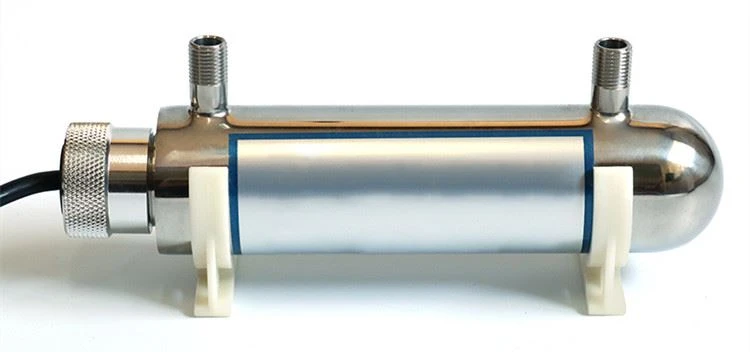

Stainless Steel Pond UV Sterilizer UV Lamps Germicidal UVC Light

FEATURES

1. Long lifespan

2. Efficient and safe

3. Good reliability and stability

4. Ozone-free

5. Beautiful appearance

6. Large production capacity

7. EPA, ISO9001, CE certified

SPECIFICATIONS

1. Type: single stainless steel pipe

2. Peak Wavelength: 254nm

3. Input Voltage: 220vAC

4. Power: 8W-40W

5. Disinfection volume: 0.23-2.7m3

6. Water pressure: 0.6MPa

7. Diameter: 63.5mm

8. Operating Temperature Range: -10 degree - 100 degree

9. Materials: Quartz glass uvc tube, 304/316 stainless steel pipe

10. Lifespan: 10000 hours

ADVANTAGE

This series of products is suitable for relatively small areas of water flow, such as household drinkina water, office buildinas, schools, small water tanks, pools and so on.

Single water treatment capacity ranges from {{0}}.2 tons per hour to 3 tons. The cavity is made of 304/316 stainless steel, which conforms to the international standard. Its appearance is beautiful and the quality is guaranteed. The polishing process on the inner wall has improved the sterilization efficiency. Full range of products is 0.6MPa pressure.The diameter of the inlet and outlet can be changed according to the customer's needs.

APPLICATIONS

Aquarium disinfection

Water treatment

Water purifier

The difference between185nm UV lamp and 254 nm UV lamp?

First, the difference between ozone lamp and ozone-free lamp.

UV bactericidal lamp belongs to a low pressure mercury lamp, and its ultraviolet UV radiation peak has two, non-ozone 254 nm (253.7 nm), ozone of 185 nm sterilization lamp. There is ozone lamp to produce ozone, ozone has strong oxidation, can effectively kill bacteria, ozone's diffuseness is just to make up for the disadvantage of disinfection of the ultraviolet ray only along linear. However, the ozone inhaled exceeding the standard is strongly stimulating the human respiratory tract, causing sore throat, chest tightness cough, trigger bronchitis and emphysema, and disinfecting is exhausted. No ozone lamp, there is a trace of ozone production, harmless to the human body, but UV light is only spread along linear, and disinfecting is dead.

Second, after the ozone-free lamp(stainless steel pond UV sterilizer UV lamps germicidal UVC light) is started, why do you smell the slight burning stabbous?

Whenever the room has just used UV bactericidal lamp to be repaired, there is always a unpleasant taste after entering. Do you still remember the taste of the quilt? By reviewing the relevant literature and investigation, under UV radiation, it can naturally form ozone from double atomic oxygen by electron radiation or exposure. In fact, ozone{{0}}free mercury lamp is not a truly odorless lamp in strict sense, which is illuminated There is still a small amount of ozone, and the "GB19258-2012" ultraviolet sterilization lamp has a clear stipulation of the odor ozone oxygen yield of odorless ozone lamps: the initial ozone output rate of odorless lamp should be less than 0.05g /(Kw.h). The initial ozone output rate of ozone lamp should be no less than 80 percent of the nominal value. According to the requirements, ozone-free ultraviolet sterilization lamps are very small after irradiation, which is basically harmless to the human body.

Third, Standard of initial ozone yield for ultraviolet lamps

The initial ozone output rate of odorless lamps should be less than 0.05 g / (kW Bull; H).

The initial ozone output rate of ozone lamp should be no less than 80 percent of the nominal value.

Data Source "GB19258-2012 Ultraviolet Synamic" standard.

Fourth, how to choose ozone lamp and ozone-free lamp

UV light selection should be scientifically selected according to the actual application scenario.

Ometric oxygen-free lamp: ozone sterilization lamp has the characteristics of ozone, has been widely used in air sterilization, water treatment, elevator buildings, blood inactivation, microbial inactivation, cosmetics / food production flow, and other applications.

There is ozone sincture lamp: ozone ultraviolet light is generally manufactured by Gaopeng glass, and the ultraviolet rays and air of 185 nm can produce a strong oxidation, which can kill the ultraviolet radiation, which can effectively kill bacteria, ozone UV lamp products can be applied to sewage treatment, splitting chlorine treatment, exhaust gas cigarette decomposition, air purification and addition of methanol and other areas. Our ozone-free sterilization lamp is made of quartz glass, compared to Gaopeng glass, quartz glass is stronger, effective UV light transmittance is 93 percent , and the ultraviolet radiation intensity of the lamp tube will be higher. There is ozone ultraviolet bactericidal lamp refer to 185 nm UV lamp, manufactured by Gaopeng glass, the light transmittance is <50%, and="" 185="" nm="" belongs="" to="" vacuum="" ultraviolet.="" the="" emitted="" ultraviolet="" rays="" and="" oxygen="" in="" the="" air="" fluidly="" hydrolyzed="" the="" oxygen="" atom="" under="" ultraviolet="" light,="" and="" the="" oxygen="" atom="" further="" reacts="" to="" form="">
